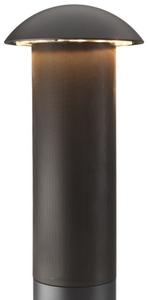

Revel® XC Series 4" 2-Way Extreme Climate Bollard Speaker with Integrated LED Lighting


Model #:

REVL42XC

Model #: REVL42XC
522223
Revel
$99,999.00

At a Glance

Product Dimensions 33.7"h x 8.58"w x 8.58"d

The Revel L42XC is a 2-way bollard speaker with integrated low-voltage LED lighting, designed to deliver unparalleled, uncompromised Revel sound while withstanding the harsh environments of locations that are hot, cold, damp, humid or wet.Read More

Available in Store Only

Call Store for Availability

Get to know this product.

Product Overview

Product Overview

The L42XC is a 2-way bollard speaker featuring integrated low-voltage LED, 360° down lighting with independent control, making it one of the only landscape products in the world that combines the enjoyment value of pristine audio with the added safety and security of illumination for your entertainment space.

The sophisticated LED dimmable lighting can also be used in pathway or general landscape lighting applications, or to simply add relaxing ambience to your evening entertainment.

Premium components, including dual 4-inch aluminum cone woofers and a 1-inch aluminum dome tweeter provide the memorable sonic experience Revel is known for, while unparalleled build quality ensures lasting brilliant performance in even the most challenging climate conditions.

The L42XC can be buried up to half of its height for a reduced visual presence, or used with the optional deck mount as a freestanding tower on hard surfaces.

Dual 4-inch/100mm Micro Ceramic Composite (MCC) aluminum diaphragm woofer

1-inch/25mm Micro Ceramic Composite (MCC) aluminum diaphragm tweeter

IP67 rating that certifies protection against dust, and strong water jets and waves

4-Ohm or 70V operation via integrated transformer with selectable power taps up to 60W

Integrated dimmable lighting for use as a path light, or general fill light with 3,000K color temperature

Compatible with 12V AC or DC lighting controllers

Useful Documents
Specifications

General Specs

Product Weight (lbs.)20.7
MPN022-21775
Frequency Response80Hz – 20kHz @-3dB
Water ResistantYes
Outdoor ApprovedYes
CollectionXC Series
Dust ResistantYes
RMS Power Handling (Watts)125
ColorBrown
Impedance4 Ohms
Sensitivity86dB (2.83V @1M) in Bypass mode
Depth (in.)8.58
Height (in.)33.7
Width (in.)8.58
WarningProposition 65 Warning for California Residents
