Product Overview

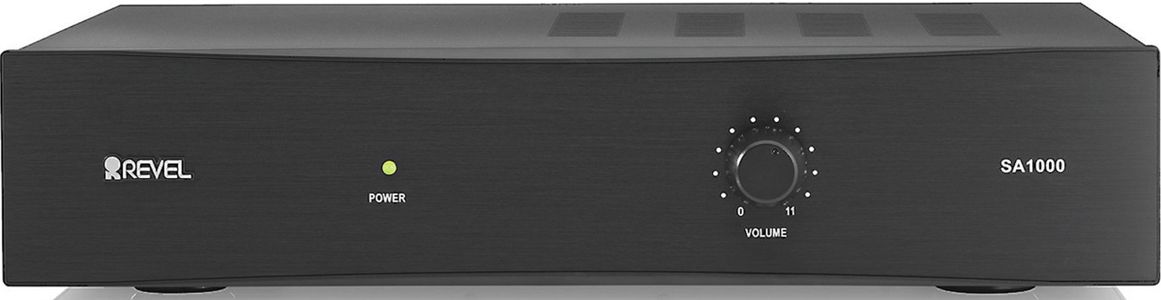

The SA1000 is a custom amplifier solution, optimized for the highest level of performance and reliability. This rackmount amplifier includes user features on the front panel, and a custom installer focused feature set on the rear panel. As part of Revel's in-wall subwoofer system, this rack mountable Class D component is designed to power the B28W in-wall subwoofer.
The SA1000 single channel, rack mount amplifier has two outputs in parallel, so you can power one B28W subwoofer module with 350W RMS (750W Peak). When a second B28W subwoofer module is connected to the second output of the SA1000 amplifier, the total output power increases to 700W RMS (1500W Peak).
This complete in-wall subwoofer solution with external rack mountable amplifier is designed to complement Revel’s high-performance architectural product portfolio. It delivers dynamic bass and lifelike realism to concealed music and home cinema systems resulting from Revel’s advanced engineering prowess, and comprehensive subjective and objective measuring tests.
User-adjustable Single-band PEQ – Room Equalization
Short-circuit and over-current protection
Over-temperature compensation
Two dual-banana output connectors for easy connection
Completes in-wall/in-ceiling solutions for music and home theater systems
Connect up to two B28W Subwoofers with each SA1000 Amplifier
Designed to fit standard 2 x 4 stud frame construction
Self-contained subwoofer module with integrated back-box allows for easy retrofit installations
