Product Overview

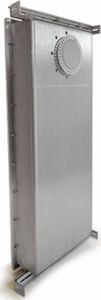

The 63SA-4 is part of the new Small Aperture® collection of ceiling and in-wall systems that provide high volume levels, deep bass and wide coverage from a small 3” flush and seamless round or square opening. James SA Series models are essentially hidden, yet provide the complete musical experience. Each unit has been engineered to integrate a multitude of designer demands, the no compromise design solution for the meticulously artful and audio enthusiast alike. Each system is a true full range, 3-way design with a 0.75” (19mm) aluminum dome tweeter, 2” (89mm) aluminum midrange driver and a 6.5” (165mm) aluminum mini PowerPipe subwoofer, all concentrically mounted. Designed for whole-house audio installations, the 63SA-4 is especially suited for high end homes where critical listening is paramount and aesthetics are equally as vital. Measuring in at less than 4" deep, these units are especially suited for in-wall applications as they fit nicely into any 2x4 stud bay. The point source mid/high module provides excellent off-axis response and the hidden mini PowerPipe woofer generates bass down to 48Hz for a truly full-range music experience, yet the user only sees a 3” round or square seamless flush opening. The grille configuration has industry standard mounting and accepts high-end lighting trim kits to allow the speaker to match lighting fixtures in the same installation.
The 63SA-4 conforms to UL2043 and UL1480 standards for fire safety and plenum use.
Specifications
Frequency Response: 40Hz-22kHz +/-3dB
Nominal Impedance: 4 ohms
Sensitivity: 87dB 2.83V/1m
Cutout: See trim kit dimensions
Recommended Power Range: 25 - 50W (protection limited)
Woofer: 6.5" (165mm) Aluminum
Mid: 2" (50mm) Aluminum
Tweeter: 0.75" (19mm) Aluminum
Enclosure: Aircraft Marine Grade Aluminum
Finishes : See Trim Kit Options
Height: 26 in (660.40 mm)
Width: 11 in (279.40 mm)
Depth: 3.4 in (86.36 mm)
Required Mounting Depth: 4 in (101.60 mm)
Grille Height: 3 in (76.20 mm)
Grille Width: 3 in (76.20 mm)
